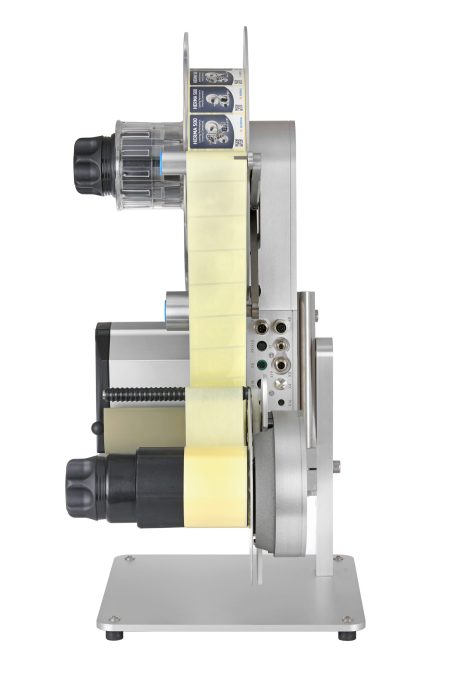

Herma 500
Maximum Precision Applicator
Maximum Precision Applicator
Herma 500
Running at up to 200 meters or 2,000 labels a minute, the HERMA 500 is one of the top performers. In synchronous mode with motorized winders and a loop unit, the labels are applied with unrivaled accuracy. An optional cooling element ensures outstanding performance even during 24/7 continuous operation. With its wide range of configuration variants in modular design, the HERMA 500 is a genuine all-rounder.
What sets the Herma 500 apart from others?
▪ The experiences gained from the more than 40,000 HERMA 400 applicator solutions used worldwide over the last 15 years
▪ Maximum flexibility and performance thanks to our comprehensive modular applicator system
▪ User-friendliness thanks to intuitive operation and quick-change components
▪ The latest “state of the art” technology and connectivity for the packaging industry
▪ HERMA’s 50 years of experience as the technological leader in applicator engineering
▪ The knowledge of 250 experts focused solely on the subject of applicators
Technical Specifications
Mounting form
Orientation: Left-hand unit • right-hand unit
Base unit
HERMA 500 Labeling speed:
0 – 30 / 50 / 80 / 150 / 200 m/min
0 – 98 / 164 / 262 / 492 / 656 ft/min
Interfaces:
I/O interface • Industrial Ethernet • Ethernet TCP/IP • OPC UA • CAN bus • master encoder • start signal • label sensor • printer • transfer system • power out
Labeling functions:
Master encoder operation • CAN machine control
UL and CSA certification:
Optional
Label sensor Sensor type:
Forked light barrier • FS03 for sensing the last label • ultrasonic forked sensor
Operation
Operation via pictograms on the 4,3-inch color touchscreen • quick access to 4 parameters, menu, user administration, search, messages, operation on/off • format management • language selection • can be operated with gloves • button for manual label feed • main switch for complete mains disconnection
Displays
Display rotatable in 90° steps • display of configurable main parameter • status display: ready, warning, malfunction in various colors • display of threading guide • display of user manual
Service functions
Remote access via web browser • functional upgrade via code activation • firmware update via Ethernet TCP/IP
Control
Drive technology:
AC servo motor
Control technology:
Fully integrated in the HERMA 500
Operating data
Power supply:
100 – 240 V AC, 400 W, 50 – 60 Hz
Operating temperature:
0 – 40° C • 32 – 104° F
Protection class: IP66
Label Specifications
Label width:
80 / 160 / 240 / 320 mm
3.1“ / 6.3“ / 9.4“ / 12.6“
Reel diameter:
300 / 400 / 500 / 600 mm
11.8“ / 15.7“ / 19.7“ / 23.6“
